Roberts Precision Machine offers full CNC machining services and general contract management for manufactured goods on a build to order basis using the following machines.
|
SWISS TURNING

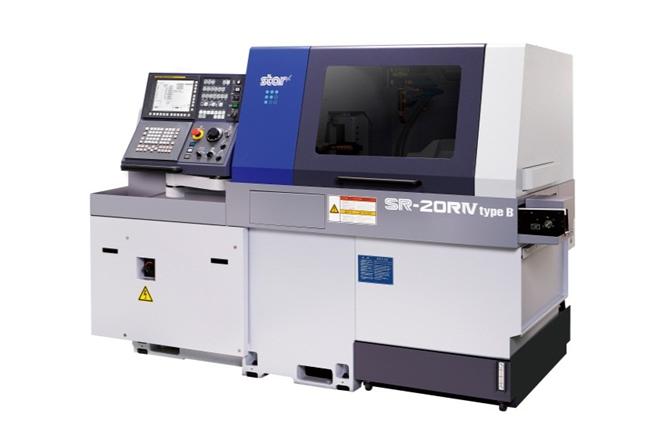

STAR SR20RIV SWISS MACHINE
Star's newest SR-20RIV swiss machine has the most advanced features and broad range of machining variations including a 27-position tool station which can accommodate up to 41 tools with a full B-axis for cross drilling/milling and a variety of tooling options. The SR-20RIV swiss machine has a tool post especially designed for backworking, equipped with a Y-axis control function as standard. Both the main and sub spindles use a built-in motor and built-in sensor for improving indexing accuracy. This machine is designed with complex machining functions adaptable to multiple industries. We have this machine matched to an FMB magazine automatic bar loader for 24/7 operation capabilities.
|
|
NEXTURN 32MM CNC SWISS MACHINE
Our Nexturn 32mm swiss machine was purchased brand new in May 2005. The Nexturn is a CNC swiss automatic mated with an Iemca bar loader. This machine can run parts from 0.10” to 1.25” diameter continuously from bar stock, with full 3-axis milling on two spindles and 9 live tool stations. It is a very economical method for producing complex parts in large lot sizes.
learn more about our swiss machining capabilities
|
MULTI-AXIS TURN/MILL CENTERS
MORI-SEIKI NL2000MY MULTI-AXIS TURN/MILL CENTER
Machine purchased new in June, 2007. The NL2000 incorporates full 3 axis milling with precision turning, enabling the precise manufacturing of components with complex and challenging relational features. In addition to increased throughput over conventional processes, this equipment will simplify production of parts that have been economically prohibitive to manufacture in small or medium lot sizes. Machine matched with SMW bar feed to facilitate production of parts from 0.2” to 2.50” continuously from bar stock.
Machine capacity is 9.84” in diameter, by 20.0” in length, Y-axis travel +/- 2.0” from center, full C-axis, live tooling to 6000 RPM.
|
|

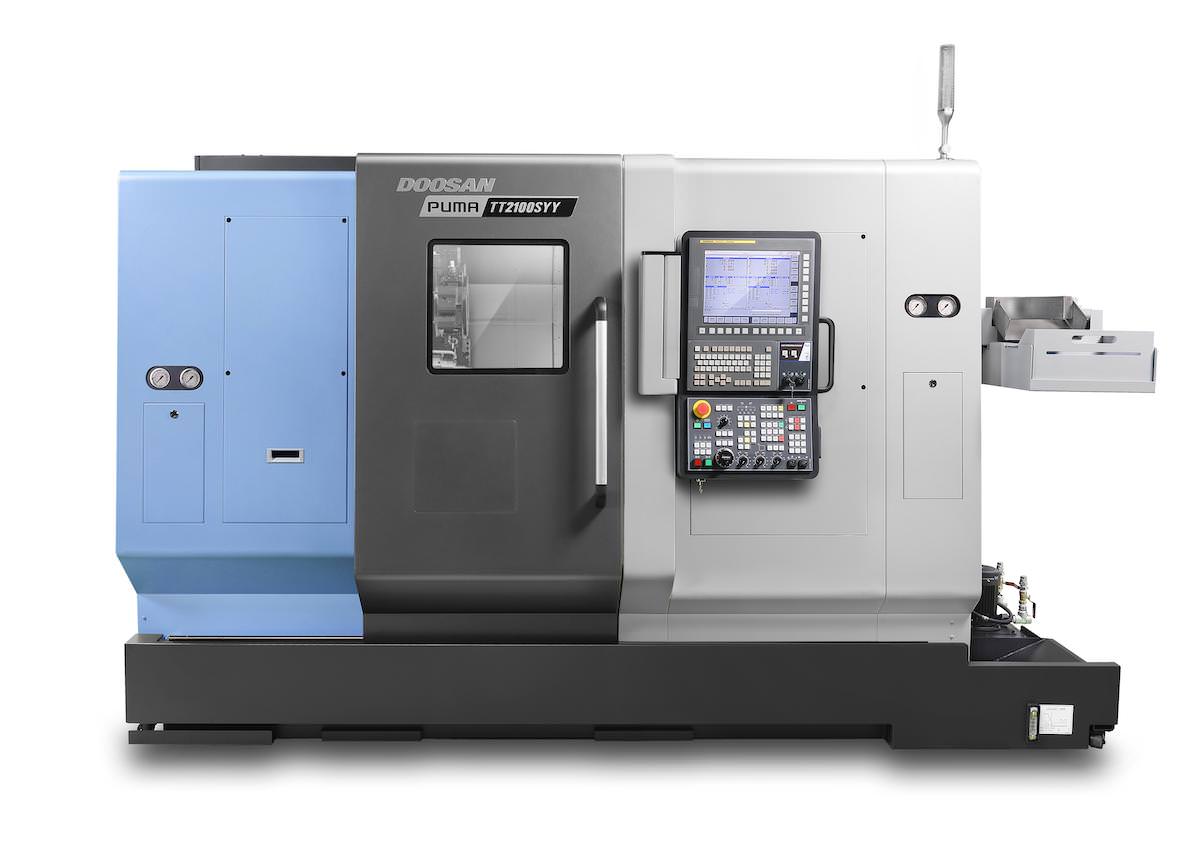

DOOSAN TT2100SYY
Multi-axis turn/mill center.
Machine purchased new in 2020 with FMB bar loader. The TT2100SYY incorporates full 3-axis milling and precision turning on two spindles simultaneously. This allows for ‘single piece flow’, a completed part from bar stock with no further machining required. For repeating small batches of complex and demanding feature par
|
|
OKUMA LB15IIMY/1000 MULTI-AXIS TURN/MILL CENTER
Machine purchased new in June, 1996 with all software options. The Okuma LB15IIMY/1000 incorporates full 3 axis machining with precision turning. Auxiliary equipment includes LNS bar feed system, giving the capacity of manufacturing part from .2” to 2.0” continuously from bar stock.
Machine capacity is 9.84” in diameter, by 39.0” in length, Y-axis travel +/- 2.0” from center, full C-axis, live tooling to 4500 RPM.
|
|
5-AXIS MILLING
MATSUURA MX-330 5-axis milling center with 10 pallet pool.
Machine purchased new in 2019 with full pallet system. This machine is the last word in precision 5-axis machined parts, with the combined advantage of a pallet pool to support high volume and continuous production. The machine features Renishaw probing and tool setter, high pressure coolant, advanced tool management and a pallet controller that allows for lights-out production. We use tooling components from Lang, Orange, and 5th Axis for perfect work holding every time.
|
MILLING CENTERS
MORI-SEIKI NV5000 VERTICAL MILLS (2)
Machines purchased new in 2006 and 2011. The NV5000s are equipped with two pallets, high pressure coolant, and Renishaw probes. The pallet system gives the capacity to change parts while the machine is working, facilitating higher throughput and shorter lead times. High pressure coolant is essential for small feature milling and deep hole drilling. The probing capability is ideal for work with castings.
|
MATSUURA MC-1000 VF MACHINING CENTER
Machine purchased new in August, 1997 with all software options, and forth axis. We believe the Matsuura to be the most accurate and highest quality 40 taper milling machine available. Machining envelope is 40” by 20” with 20” in Z axis. Machine accuracy is 0.0002” over full stroke, with repeatability of 0.00004”. |
MORI SIEKI MV-40B MACHINING CENTER
Machine purchased new in October, 1988 with full fourth axis, and all software options.
Machine envelope is 16.1" by 31.5" with 20.1" in Z axis.
Positioning accuracy is .0002" over the full travel, with repeatability of .00004" |
MORI SIEKI MV-JUNIOR MACHINING CENTER
Machine purchased new in June, 1991 with all options. This is a very accurate machine, similar in size and function to the MV-40B. |
TURNING CENTERS
OKUMA LB15 TURNING CENTERS (2)
Machines purchased new in 1987 and 1990, with all software options.
Machine capacities are 9.84" in diameter, by 19" in length.
|
|
AUXILLARY EQUIPMENT
- Bridgeport Mills (2)
- Hardinge Toolroom lathe
- RPM precision Hydraulic press
- Abrasive #3 surface grinder
- D.C. Morrison Keyseater
- Electro-Arc tap disintegrator
- Delray downdraft table
- Baldor grinders (4)
|
